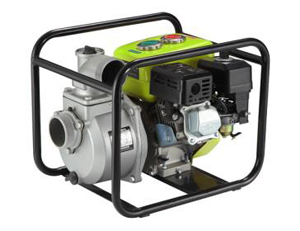

| Gaosline Water Pump ( WP-K SERIES) |
|
|
| Model |
|
WP50K |
WP80K |
| Pump |
Outlet size(mm) |
50 |
80 |
| Inlet size(mm) |
50 |
80 |
| Lift.Max. Head(m) |
30 |
30 |
| Displacement,Q.Max(m3/h) |
33 |
55 |
| Suction,Max Head(m) |
7 |
7 |
| Engine |
Model |
168F |
168F-1 |
| Type |
OHV,single cylinder, four stroke,Air-cooled |
| Bore x stroke(mm x mm) |
68x45 |
68x54 |
| Displacement (ml) |
163 |
196 |
| Compressin ratio |
8.5:1 |
8.5:1 |
| Max.power output(HP/kw) |
5.5/4.0 |
6.5/4.7 |
| Rated Power output(HP/kw) |
4.7/3.4 |
5.0/4.0 |
| Max. torque |
10.5 |
11 |
| Ignition system |
T.C.I |
T.C.I |
| Starting system |
Recoil starter/electric starter |
| Engine oil capacity (L) |
0.6 |
0.6 |
| Fuel capacity (L) |
3.6 |
3.6 |
| Min. fuel consumption (g/kw.h) |
395 |
395 |
| Unit |
Dimension(LxWxMsH) |
480x380x400mm |
510x390x425mm |
| Net weight |
23kg |
25kg | |
